## Computation Of 4th order Approximation For 2nd Order Derivative function Using Taylor Table In MATLAB

Deriving the 4th order approximation for 2nd order derivative of a function using Taylor table for centered, skewed right-sided stencil and skewed left_sided stencil and compare the error results for the same using MATLAB.

Given function,

f(x)    =  exp(x)*cos(x)

The second_order derivative,  f''(x)  = -2*exp(x)*sin(x)

MATLAB Code for the finite difference schemes is as follows:-

% Forth - order approximation
% Second order ferivative
% Skewed- stencil (forward difference)
% Using nodes = 6

clear all
close all
clc

x = pi;

dx = linspace(pi/10,pi/300,100);

% Analytical function , f(x)     = exp(x)*cos(x)
% Analytical_derivative , f''(x) = -2*exp(x)sin(x)

Analytical_derivative = -(2*exp(x)* sin(x))

%Forward_Matrix_Scheme_for_4th_order_Approximation
% Matrix_form_of_the_Forward_Difference_linear_equation.

a = [ 1 1 1 1 1 1; 0 1 2 3 4 5; 0 1/2 2 9/2 8 25/2; 0 1/6 8/6 27/6 64/6 125/6; 0 1/24 16/24 81/24 256/24 625/24; 0 1/120 32/120 243/120 1024/120 3125/120];

b = [ 0; 0; 1; 0; 0; 0];

c = a\b;  % Inverse matrix operation

% The_Coefficients_for_the_Forward_Difference_linear_equation.

% c_1 =  3.7500, c_2 = -12.8333, c_3 = 17.8333, c_4 = -13.0000, c_5 =  5.0833 , c_6 = -0.8333

% Forward_Difference_Scheme(FDS)_using_6_Nodes

% Skewed_right_handed_stencil.

for i = 1:length(dx)

FDS(i)      = ((3.7500*exp(x)*cos(x)) + (-12.8333*exp(x+dx(i))*cos(x+dx(i))) +  (17.8333*exp(x+2*dx(i))*cos(x+2*dx(i))) + (-13.0000*exp(x+3*dx(i))*cos(x+3*dx(i))) + (5.0833*exp(x+4*dx(i))*cos(x+4*dx(i))) + (-0.8333*exp(x+5*dx(i))*cos(x+5*dx(i))))/(dx(i)^2);

FDS_error   = abs(FDS - Analytical_derivative);

end

% END

% Backward_Difference_Scheme_For_4th_order_Approximation
% MAtrix_form_of_the_Backward_Difference_Linear_equation

M = [1 1 1 1 1 1; -5 -4 -3 -2 -1 0; 25/2 16/2 9/2 4/2 1/2 0; -125/6 -64/6 -27/6 -8/6 -1/6 0; 625/24 256/24 81/24 16/24 1/24 0; -3125/120 -1024/120 -243/120 -32/120 -1/120 0]

N = [ 0;0;1;0;0;0]

O = M\N   % inverse operation of matrix

% Coefficients_for_the_backward_Difference_linear_equation.

% O_1 = -0.8333, O_2 = 5.0833, O_3 = -13.0000, O_4 = 17.8333, O_5 = -12.8333, O_6 = 3.7500

% Backward_difference_Scheme_using_6_nodes

% skewed_left_sided_sencil

for i = 1:length(dx)

BDS(i)      = ((-0.8333*exp(x-5*dx(i))*cos(x-5*dx(i))) + (5.0833*exp(x-4*dx(i))*cos(x-4*dx(i))) + (-13.0000*exp(x-3*dx(i))*cos(x-3*dx(i))) + (17.8333*exp(x-2*dx(i))*cos(x-2*dx(i))) +(-12.8333*exp(x-dx(i))*cos(x-dx(i))) + (3.7500*exp(x)*cos(x)))/(dx(i)^2)
BDS_error   = abs(BDS - Analytical_derivative);

end

% END

% Central_order_Scheme_4th_order_Approximation
% Matrix_form_for_Central_order_Difference_Scheme_linear_Equation

P = [ 1 1 1 1 1; -2 -1 0 1 2; 2 1/2 0 1/2 2;-8/6 -1/6 0 1/6 8/6; 16/24 1/24 0 1/24 16/24]

Q = [0;0;1;0;0]

R = P\Q    % Inverse_Matrix_Operation

% Coefficients_of_linear_equations

% R_1 = -0.08333, R_2 = 1.3333, R_3 = -2.5000, R_4 = 1.3333, R_5 = -0.08333

% Central_difference_Scheme_using_6_nodes.

% Symmetric_Stencil

for  i = 1:length(dx)

CDS(i)     =((-0.0833*exp(x-2*dx(i))*cos(x-2*dx(i))) + (1.3333*exp(x-dx(i))*cos(x-dx(i))) + (-2.5000*exp(x)*cos(x)) +  (1.3333*exp(x+dx(i))*cos(x+dx(i))) + (-0.0833*exp(x+2*dx(i))*cos(x+2*dx(i))))/(dx(i)^2)

CDS_error  = abs( CDS - Analytical_derivative)
end

% END

% plotting_the_the_error_of_three_schemes_against_step_size

loglog(dx, FDS_error,'g','linewidth',2);

hold on

loglog(dx, BDS_error,'b','linewidth',2);

loglog(dx, CDS_error,'r','linewidth',2);

hold off;

xlabel('Grid Size');
ylabel('Magnitude Of Error');

legend( '4th order FDS', '4th order BDS', '4th order CDS');

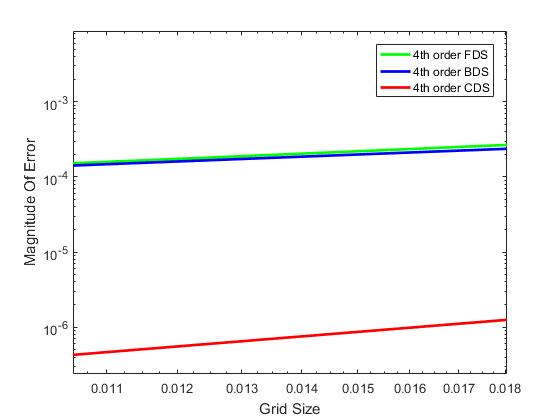

Step size vs Error

1. Deriving by a central difference scheme, 4th order approximation for 2nd order derivative.

The central difference approximation of 4th order approximation for 2nd order derivative using 5 nodes is given as :-

where

a,b,c,d and e are the coefficients which to obtained by Taylor series expansion.

Expanding each term using Taylor series and forming a table:-

The Taylor table:

f(i)   (△x) f'(x)     (△x)^2 f''(x)     (△x)^3 f'''(x)    (△x)^4 f''''(x)

a*f(i-2)      a        -2a                2a                  -8a/6              -32a/120

b*f(i-1)      b        -b                  b/2                 -b/2                 -b/120

c*f(i)         c          0                   0                     0                      0

d*f(i+1)    d          d                    d/2                 d/6                  d/120

e*f(i+2)    e          2e                  4e/2                8e/6                32e/120

Here, each column forms a linear equation. Here we have considered 5 nodes for 4th order approximation, hence there are 5 unknowns and 5 equations solved using matrix operation

Equation 1:    a + b + c + d + e = 0;

Equation 2:  -2a + (-b) + 0 + d + 2e = 0;

Equation 3:   2a + (-b/2) + d/2 + 2e = 0;

Equation 4:  -8a/6 + (-b/6) + 0 + d/6 + 8e/6 = 0;

Equation 5:  16a/24 + (b/24) + 0 + d/24 + 16e/24 = 0;

Note** :- The a, b, c, d and e coefficients in the linear equation are denoted as R_1, R_2, R_3, R_4 and R_5 in the matrix operation.

The matrix formed from the above equation is:-

Solving the matrix equation we get the coefficients as:

R =

-0.0833
1.3333
-2.5000
1.3333
-0.0833

>>

Thus, our equation takes the form as:

2. Deriving by a Forward difference scheme, 4th order approximation for 2nd order derivative ( Right side stencil using 6 nodes)

The forward difference scheme of 4th order approximation for 2nd order derivative is given as :-

where a, b, c, d, e and f are the coefficients which are obtained by taylor series expansion.

Expanding each term in the Taylor table and forming a table:

The reason for considering 6 nodes is that,  higher the  order of approximation, more the differential terms in Taylor series is required and lesser the error is generated. Which means information is required from more number of nodes to reach the exact value.

The thumb rule is:

• First derivative with O(h) accuracy         = minimum number of nodes is 2.
• First derivative with O(h^2) accuracy     = need 3 nodes
• Second derivative with O(h) accuracy     = need 3 nodes.
• Second derivative with O(h^2) accuracy = need 4 nodes.
• Second derivative with O(h^3) accuracy = need 5 nodes.
• Second derivative with O(h^4) accuracy = need 6 nodes.

The Tayor table:

f(i)     (△x) f'(x)     (△x)^2 f''(x)     (△x)^3 f'''(x)     (△x)^4 f''''(x)     (△x)^5f'"(x)

a*f(i)         a          0                  0                      0                       0                         0

b*f(i+1)     b          b                 b/2                  b/6                    b/24                   b/120

c*f(i+2)      c         2c                4c/2                 8c/6                 16c/24                32c/120

d*f(i+3)     d         3d                9d/2                27d/6                81d/24               243d/120

e*f(i+4)     e          4e               16e/2               64e/6               256e/24            1024e/120

f*f(i+5)      f           5f               25f/2               125f/6               625f/24             3125f/120

Here, each column forms a linear equation. Here we have considered 6 nodes for 4th order approximation, hence there are 6 unknowns and 6 equations solved using matrix operation.

Equation 1:  a + b + c + d + e + f = 0

Equation 2:  0 + b + 2c + 3d + 4e + 5f = 0

Equation 3:  0 + b/2 + 4c/2 + 9d/2 + 16e/2 + 25f/2 = 0

Equation 4:  0 + b/6 + 8c/6 + 27d/6 + 64e/6 + 125f/6 = 0

Equation 5:  0 + b/24 + 16c/24 + 81d/24 + 256e/24 + 625f/24 = 0

Equation 6:  0 + b/120 + 32c/120 + 243d/120 + 1024e/120 + 3125f/120 = 0

Note** :- The a, b, c, d, e and f coefficients in the linear equation are denoted as c_1, c_2, c_3, c_4, c_5 and c_6 in the matrix operation.

The matrix formed from the above equation is:

After solving the above matrix, we obtain the coefficients as

c =

3.7500
-12.8333
17.8333
-13.0000
5.0833
-0.8333

>>

Thus, our general equation takes the form as:

3. Deriving by a Backward difference scheme, 4th order approximation for 2nd order derivative ( Left side stencil using 6 nodes)

The forward difference scheme of 4th order approximation for 2nd order derivative is given as :-

where, a,b,c,d,e and f are the coefficients of the discretized algebric equation.

In the Backward difference scheme, 5 nodes has been chosen in the left hand side of the point of derivative of the function making it a skewed left-handed stencil.

The Taylor table:

f(i)     (△x) f'(x)     (△x)^2 f''(x)     (△x)^3 f'''(x)     (△x)^4 f''''(x)     (△x)^5f'"(x)

a*f(i-5)      a         -5a              25a/2               -125a/6            625a/24          -3125a/120

b*f(i-4)      b         -4b              16b/2               -64b/6             256b/24           -1024b/120

c*f(i-3)       c        -3c               9c/2                 -27c/6              81c/24             -243c/120

d*f(i-2)      d        -2d               4d/2                 -8d/6               16d/24              -32d/120

e*f(i-1)      e         -e                 e/2                   -e/6                 e/24                 -e/120

f*f(i)          f          0                  0                        0                     0                        0

Here, each column forms a linear equation. Here we have considered 6 nodes for 4th order approximation, hence there are 6 unknowns and 6 equations solved using matrix operation.

Equation 1:     a + b + c + d + e + f = 0

Equation 2:   -5a - 4b - 3c - 2d - e - 0 = 0

Equation 3:    25a/2 + 16b/2 + 9c/2 + 4d/2 + e/2 + 0 = 0

Equation 4:  -125a/6  - 64b/6 - 27c/6 - 8d/6 - e/6 + 0 = 0

Equation 5:    625a/24 + 256b/24 + 81c/24 + 16d/24 + e/24 + 0 = 0

Equation 6:   -3215a/120 - 1024b/120 - 243c/120 - 32d/120 - e/120 + 0 = 0

Note** :- The a, b, c, d, e and f coefficients in the linear equation are denoted as O_1, O_2, O_3, O_4, O_5 and O_6 in the matrix operation.

The matrix formed fom the above linear equation is-

After solving the matrix using operation O =M\N in MATLAB, we get the coefficient as

O =

-0.8333
5.0833
-13.0000
17.8333
-12.8333
3.7500

>>

Thus ,the general equation for the backward difference scheme becomes:-

INFERENCE FROM RESULTS

1. The highest absolute error is obtained in FDS (right_hand_stencil) and BDS(left_hand_stencil) scheme whereas minimum error is obtained from CDS(symmetric__stencil). CDS scheme takes values equally from both side of the stencil and hence a balanced system is taken into account for approximation.
2. The FDS(Right_stencil) and BDS(left_stencil) takes account  nodes ony from one side, and thus an unbalanced system is taken into account for 4th order approximation. When higher order of approximation is taken into account and higher the grid size (dx) is taken, then the error magnitude also increases. hence, CDS is considered better than FDS and BDS.
3. But one major potential drawback of CD scheme is that when a corner stencil is taken into consideration or a node in the boundary is taken, then symmetric stencil is not possible and only skewed schemes are possible. Skewed schemes can be implemented any time and nodes availability which is not possible in CD schemes. Hence Skewed schemes are more useful.
