Simulation of 2D heat conduction in steady and unsteady forms

Simulation of a 2D Heat Conduction problem in steady and unsteady/transient forms using iterative methods.

Project Objectives:

1. Solving the 2 Dimensional Heat conduction equation in the generalized form using various iterative techniques:

i. Explicit Solver (for unsteady state)

ii. Implicit Solvers (for both steady and unsteady state)

(a). Gauss Jacobi method

(b). Gauss Siedel method

(c). Successive Over Relaxation method

2. Analysis of steady state solution and unsteady state solution and comparison of them:

3. Stability Analysis of the unsteady state solution: ______________________________________________________________________

[Part: 1/3]: SOLVING THE 2D HEAT CONDUCTION EQUATION:

Introduction: Thermal conduction is the transfer of heat by molecular collisions of particles and movement of electrons with high kinetic energy within a body. It is an important mode of heat transfer that occurs between two bodies in contact. Conduction requires an temperature gradient between two bodies to take place, the other important modes of heat transfer are convection and radiation.

Conduction is essentially a time-dependant phenomena, the transient nature arises from the governing energy equation in 3 dimensions and transient conduction eventually moves towards steady state. (i.e. when the temperature gradients that have been established within a body do not change with time)

Problem specifications:

i. Assume that the domain is an unit square

ii. Assume Nx = Ny (Number of gridpoints is same in both x and y directions or the mesh is a square mesh)

iii. Boundary Conditions: (Drichlet type)

1. Left wall = 400K

2. Top wall = 600K

3. Right wall = 800K

4. Bottom wall = 900K

The Plate is subjected to the boundary conditions at time t = 0. The Temperature of the plate is considered to be the ambient temperature i.e. T = 298K

TRANSIENT / UNSTEADY STATE SOLUTION:

Derivation of the Numerical Scheme:

From the generalized Energy equation in 3 Dimensions we make the following assumptions:

i. No convection occurs

ii. No internal heat generation or dissipation

iii. Constant properties of system i.e. `alpha != f(t,x,y)`

Hence for a 2 Dimensional condition we have:

`(del^2T)/(delx^2)+(del^2T)/(dely^2) = alpha(delT)/(delt)`

We Discretize the spatial terms by central differencing (`O(h^2)`) i.e.

`(del^2T)/(delx^2) = (T_(i-1,j)-2T_(i,j)+T_(i+1,j))/(Deltax^2)`

`(del^2T)/(dely^2) = (T_(i,j-1)-2T_(i,j)+T_(i,j+1))/(Deltay^2)`

We discretize the temporal terms by forward differencing (`O(h)`) i.e.

`(delT)/(delt) = ((T^(n+1))_(i,j)-(T^(n))_(i,j))/(Deltat)`

Hence we have:

`(T_(i-1,j)-2T_(i,j)+T_(i+1,j))^(n+1)/(Deltax^2) + (T_(i,j-1)-2T_(i,j)+T_(i,j+1))^(n+1)/(Deltay^2) = ((T^(n+1))_(i,j)-(T^(n))_(i,j))/(Deltat)`

We define two constants `K1` and `K2` such that:

`K1 = alpha(Deltat)/((Deltax)^2)`

`K2 = alpha(Deltat)/((Deltay)^2)`

Here `Deltax = Deltay`

Hence the equation:

`(T^(n+1))_(i,j)=(T^(n))_(i,j)+K1((T^(n+1))_(i-1,j)-2(T^(n+1))_(i,j)+(T^(n+1))_(i+1,j))+K2((T^(n+1))_(i,j-1)-2(T^(n+1))_(i,j)+(T^(n+1))_(i,j+1))`

`(T^(n+1))_(i,j)=((T^(n))_(i,j)+(K1(T_(i-1,j)+T_(i+1,j))+K2(T_(i,j-1)+T_(i,j+1)))^(n+1))/(1+2K1+2K2)`

Here `n` denotes the time index and `(i,j)` denotes the space index

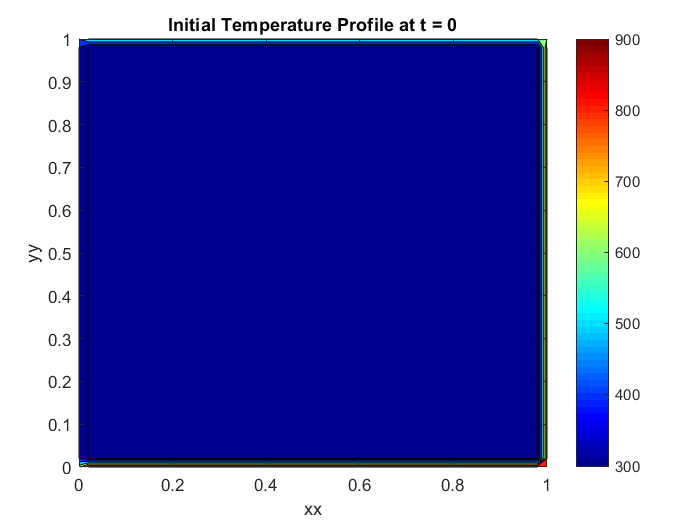

initial_cond

Other conditions are specified for the problem:

Thermal Diffusivity `alpha` = `10^-4`

Time-step = 0.01 seconds

Number of grid-points = 51

dx = dy = 0.02

tolerance value = `10^-4`

1. Explicit Iteration Scheme:

(A) MATLAB PROGRAM:

%% MATLAB Program to generate temperature profile of 2D Transient State Heat Conduction Equation explicitly:
clear all;
close all;
clc;

%% Initializing Variables:
Nx = 51;
Ny = Nx;
x = linspace(0,1,Nx);
y = linspace(0,1,Ny);
dx = 1/(Nx-1);
dy = 1/(Ny-1);
alpha = 1e-4;
t_start = 0;
t_end = 1/alpha;
dt = 0.01;
error = 6e9;
tol = 1e-4;

%% Initializing the Temperature grid:
T = 298*ones(Nx,Ny);
T(1,:) = 900; % Bottom Temperature
T(end,:) = 600; % Top Temperature
T(:,1) = 400; % Left Temperature
T(:,end) = 800; % Right Temperature
% Edge refining
T(1,1) = (900+400)/2;
T(1,end) = (900+800)/2;
T(end,1) = (400+600)/2;
T(end,end) = (800+600)/2;

%% CFL Number calculation and adaptive Time-step control:
CFL_Number = alpha*dt/(dx^2);

%% Calculation of Temperature Distribution explicitly using iterative solvers:

k1 = (alpha*dt)/(dx^2);
k2 = (alpha*dt)/(dy^2);
[xx,yy] = meshgrid(x,y);
Told = T;
T_prev_dt = Told;
tic;
counter = 1;
for z = 1:20000
    %% Gauss Jacobi explicit Iteration Scheme
    for i = 2:Nx-1
        for j = 2:Ny-1
            term1 = Told(i,j);
            term2 = k1*(Told(i-1,j)-2*Told(i,j)+Told(i+1,j));
            term3 = k2*(Told(i,j-1)-2*Told(i,j)+Told(i,j+1));
            T(i,j) = term1+term2+term3;
        end
    end
    Told = T;
    counter = counter+1;
end
time_counter = toc;
figure(1)
[C,h] = contourf(xx,yy,T);
colorbar;
colormap(jet);
clabel(C,h);
title(sprintf('2D Unsteady state heat conduction (Explicit Method) n Number of iterations: %d (Time: %0.2fs) n Computation Time: %0.4f n CFL Number: %0.4f',counter-1,z*dt,time_counter,CFL_Number));
xlabel('xx');
ylabel('yy');

 (B) RESULTS:

explicit

 2. Implicit Iteration Scheme:

(A) MATLAB CODE:

%% MATLAB Program to solve the unsteady 2D Heat Conduction equation Implictly:
clear all;
close all;
clc;

%% Initializing Variables:
Nx = 51;
Ny = Nx;
x = linspace(0,1,Nx);
y = linspace(0,1,Ny);
dx = 1/(Nx-1);
dy = 1/(Ny-1);
alpha = 1e-4;
t_start = 0;
t_end = 1/alpha;
dt = 0.01;
Nt = [t_start:dt*50:t_end];
error = 6e9;
tol = 1e-4;

%% Initializing the Temperature grid:
T = 298*ones(Nx,Ny);
T(1,:) = 900; % Bottom Temperature
T(end,:) = 600; % Top Temperature
T(:,1) = 400; % Left Temperature
T(:,end) = 800; % Right Temperature
% Edge refining
T(1,1) = (900+400)/2;
T(1,end) = (900+800)/2;
T(end,1) = (400+600)/2;
T(end,end) = (800+600)/2;

%% Calculation of optimal value of over-relaxation parameter (omega):
omega = 2/(1+sin(pi*dx));

%% Calculation of Temperature Distribution explicitly using iterative solvers:

k1 = (alpha*dt)/(dx^2);
k2 = (alpha*dt)/(dy^2);
[xx,yy] = meshgrid(x,y);
Told = T;
T_prev_dt = Told;
counter = 1;
solver = input('Enter the number for the dedicated solver type: n 1 for Gauss Jacobi n 2 for Gauss Siedel n 3 for SOR n');
tic;
for k = 1:20000
    %% Gauss Jacobi implicit Iteration Scheme:
    if solver == 1
        term1 = (1+2*k1+2*k2)^(-1);
        term2 = k1*term1;
        term3 = k2*term1;
        error = 1e9;
        while (error > tol)
            for i = 2:Nx-1
                for j = 2:Ny-1
                    H = (Told(i-1,j)+Told(i+1,j));
                    V = (Told(i,j-1)+Told(i,j+1));
                    T(i,j) = term1*T_prev_dt(i,j)+term2*H+term3*V;
                end
            end
            error = max(max(abs(Told-T)));
            Told = T;
            counter = counter + 1;
        end
    end
    if solver == 2
        term1 = (1+2*k1+2*k2)^(-1);
        term2 = k1*term1;
        term3 = k2*term1;
        error = 1e9;
        while (error > tol)
            for i = 2:Nx-1
                for j = 2:Ny-1
                    H = (T(i-1,j)+Told(i+1,j));
                    V = (T(i,j-1)+Told(i,j+1));
                    T(i,j) = term1*T_prev_dt(i,j)+term2*H+term3*V;
                end
            end
            error = max(max(abs(Told-T)));
            Told = T;
            counter = counter + 1;
        end
    end
    if solver == 3
        term1 = (1+2*k1+2*k2)^(-1);
        term2 = k1*term1;
        term3 = k2*term1;
        error = 1e9;
        while (error > tol)
            for i = 2:Nx-1
                for j = 2:Ny-1
                    %H = (T(i-1,j)+Told(i+1,j));
                    %V = (T(i,j-1)+Told(i,j+1));
                    %T(i,j) = (omega)*(term1*T_prev_dt(i,j)+term2*H+term3*V) + (1-omega)*T_prev_dt(i,j);
                    H=(omega*T(i-1,j)+(1-omega)*Told(i-1,j)+Told(i+1,j));
                    V=(omega*T(i,j-1)+(1-omega)*Told(i,j-1)+Told(i,j+1));
                    T(i,j)=T_prev_dt(i,j)*term1+(term2*H+term3*V);
                end
            end
            error = max(max(abs(Told-T)));
            Told = T;
            counter = counter + 1;
        end
    end
    T_prev_dt = T;
end
execution_time = toc;
figure(1);
str_array = ["Gauss-Jacobi","Gauss-Siedel","SOR"];
formatSpec = "Unsteady state 2D Heat Transfer by implicit: (%s Method) n Time: %0.3fs n Iteration Counter: %d n Computation time: %0.3fs";

[C,h] = contourf(xx,yy,T);
colorbar;
colormap(jet);
clabel(C,h);
xlabel('xx');
ylabel('yy');
title(sprintf(formatSpec,str_array(solver),k*dt,counter,execution_time));

 (B) RESULTS:

 i. Gauss Jacobi Method:

imp_jac

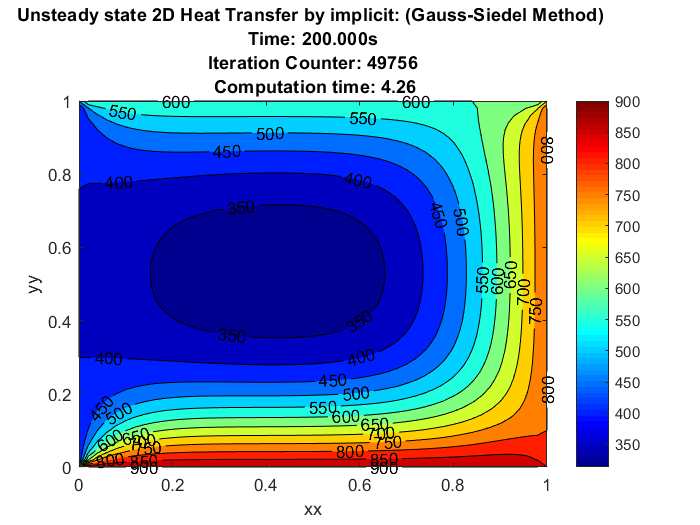

 ii. Gauss Siedel Method:

imp_gs

iii. Successive Over Relaxation Method:

imp_sor

STEADY STATE SOLUTION:

Derivation of the numerical scheme:

From the generalized Energy equation in 3 Dimensions we make the following assumptions:

i. No convection occurs

ii. No internal heat generation or dissipation

iii. `(delT)/(delt) = 0`

Hence the equation becomes:

`(del^2T)/(delx^2)+(del^2T)/(dely^2) = 0`

We Discretize the spatial terms by central differencing (`O(h^2)`) i.e.

`(del^2T)/(delx^2) = (T_(i-1,j)-2T_(i,j)+T_(i+1,j))/(Deltax^2)`

`(del^2T)/(dely^2) = (T_(i,j-1)-2T_(i,j)+T_(i,j+1))/(Deltay^2)`

hence:`(T_(i-1,j)-2T_(i,j)+T_(i+1,j))/(Deltax^2) + (T_(i,j-1)-2T_(i,j)+T_(i,j+1))/(Deltay^2) = 0`

Also `Deltax = Deltay`

`T_i = 1/4(T_(i-1,j)+T_(i+1,j)+T_(i,j-1)+T_(i,j+1))`

Number of gridpoints Nx = Ny = 81

other problem specifications are same as before.

SOLVING THE SYSTEM IMPLICTLY:

(A) MATLAB PROGRAM:

%% MATLAB Program to generate the 2D temperature distribution at steady state:
clear all;
close all;
clc;

%% Initial Conditions:
Nx = 81;
Ny = Nx;
x = linspace(0,1,Nx);
y = linspace(0,1,Ny);
dx = 1/(Nx-1);
dy = 1/(Ny-1);

k = 2*(1/(dx^2)+1/(dy^2));
error = 1e8;
tol = 1e-4;

%% Initializing the temperature matrix:

T = 298*ones(Nx,Ny);
T(1,:) = 900; % Bottom Temperature
T(end,:) = 600; % Top Temperature
T(:,1) = 400; % Left Temperature
T(:,end) = 800; % Right Temperature
% Edge refining
T(1,1) = (900+400)/2;
T(1,end) = (900+800)/2;
T(end,1) = (400+600)/2;
T(end,end) = (800+600)/2;

%% Calculation of over-relaxation parameter Omega:

omega = 2/(1+sin(pi*dx));
%% Solving the 2D steady state system iteratively:
[xx,yy] = meshgrid(x,y);
Told = T;

solver = input('Enter the desired number: ')

tic;
%% Gauss Jacobi Iteration Scheme:
if solver == 1
    iter_count_jac = 1;
    while (error > tol)
        for i = 2:Nx-1
            for j = 2:Ny-1
                term1 = (Told(i-1,j)+Told(i+1,j))/(k*(dx^2));
                term2 = (Told(i,j-1)+Told(i,j+1))/(k*(dy^2));
                T(i,j) = term1+term2;
            end
        end
        error = max(max(abs(Told-T)));
        Told = T;
        iter_count_jac = iter_count_jac + 1;
    end
end
%% Gauss Siedel Iteration Scheme:
if solver == 2
    iter_count_gs = 1;
    while (error > tol)
        for i = 2:Nx-1
            for j = 2:Ny-1
                term1 = (T(i-1,j)+T(i+1,j))/(k*(dx^2));
                term2 = (T(i,j-1)+T(i,j+1))/(k*(dy^2));
                T(i,j) = term1+term2;
            end
        end
        error = max(max(abs(Told-T)));
        Told = T;
        iter_count_gs = iter_count_gs + 1;
    end
end
%% Successive Over Relaxation (SOR) Iteration Scheme:
if solver == 3
    iter_count_sor = 1;
    while (error > tol)
        for i = 2:Nx-1
            for j = 2:Ny-1
                term1 = (T(i-1,j)+Told(i+1,j))/(k*(dx^2));
                term2 = (T(i,j-1)+Told(i,j+1))/(k*(dy^2));
                 T(i,j) = omega*(term1+term2)-(omega-1)*Told(i,j);
            end
        end
        error = max(max(abs(Told-T)));
        Told = T;
        iter_count_sor = iter_count_sor + 1;
    end
end
time_required = toc;
figure(1)
[C,h] = contourf(xx,yy,T);
colorbar;
colormap(jet);
clabel(C,h);
if solver == 1
    title(sprintf('Temperature profile of steady state heat conduction using Gauss Jacobi method n No. of Iterations: %d n Computation Time: %0.3f s',iter_count_jac,time_required));
else if solver == 2
        title(sprintf('Temperature profile of steady state heat conduction using Gauss Siedel method n No. of Iterations: %d n Computation Time: %0.3f s',iter_count_gs,time_required));
    else if solver == 3
            title(sprintf('Temperature profile of steady state heat conduction using SOR method n No. of Iterations: %d n Computation Time: %0.3f s n Relaxation Parameter: %f',iter_count_sor,time_required,real(omega)));
        end
    end
end
xlabel('xx');
ylabel('yy');

(B) RESULTS:

i. Gauss Jacobi Method:

steady_jac

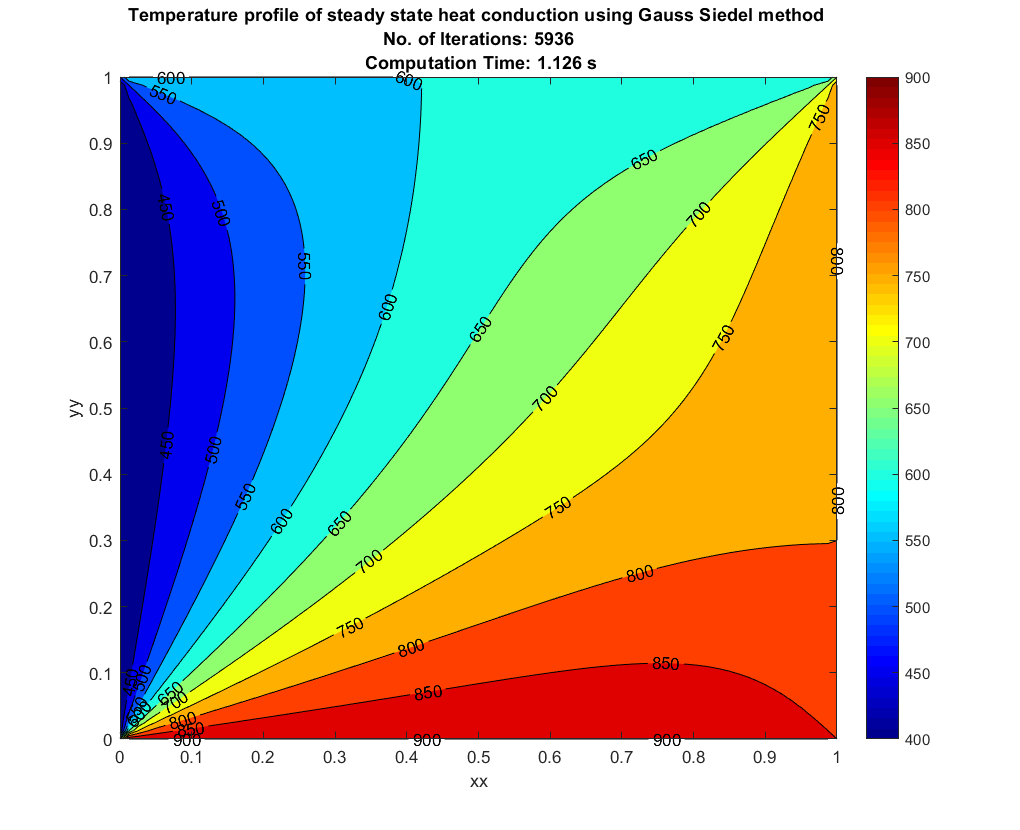

ii. Gauss Siedel Method:

steady_gs

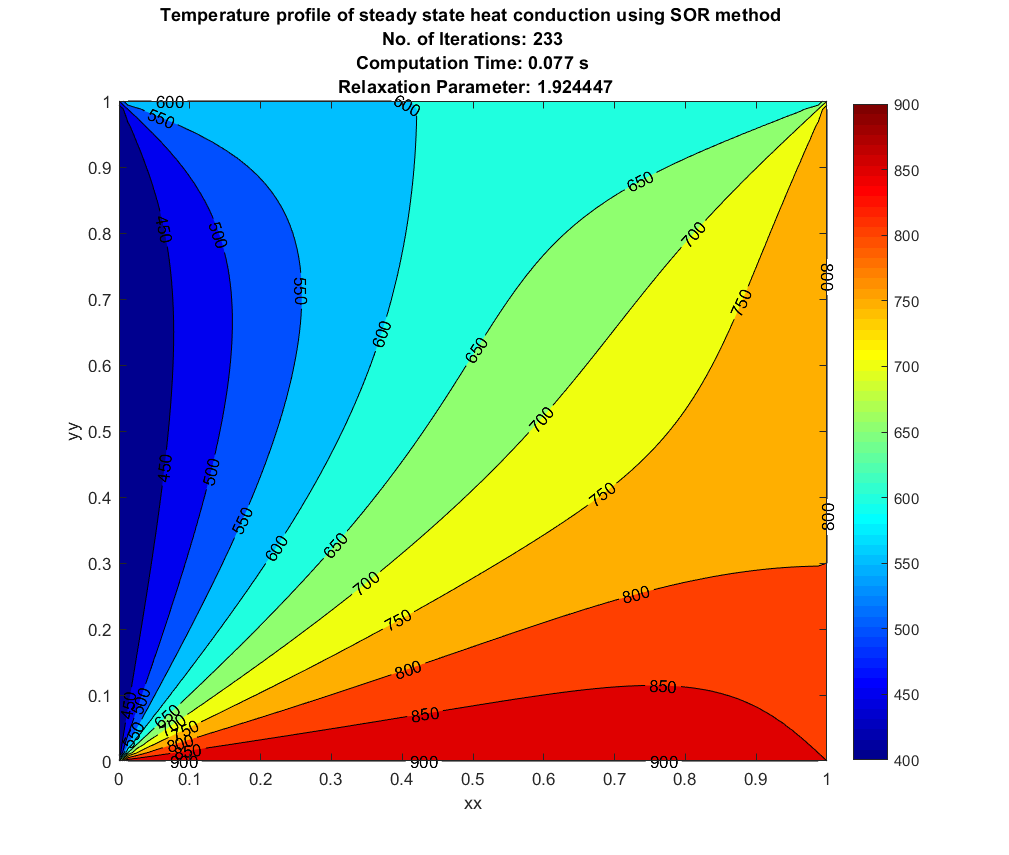

iii. Successive Over Relaxation Method:

steady_sor

The Optimal Value of `omega` is given by the formula:

`omega_(opt)=2/(1+sin(pidx)`
