Solving 2-D 2nd Order Linear Transient &Steady  Heat Conduction Equation Using Both Explicit And Implicit Numerical Schemes In MATLAB.

Solving 2-D 2nd Order Linear Transient &Steady  Heat Conduction Equation Using Both Explicit And Implicit Numerical Schemes In MATLAB.



  • Explicit Scheme : We say that a scheme is explit when the information at time level "n+1" depends on previous time levels i.e., "n , n-1" e.g. the upwind difference schemes for the convection equation is an explicit schemes.
  • Implicit Scheme : In this schemes the information at time level "n+1" is not only dependent on previous time steps "n , n-1" but also on current time step "n+1" e.g.      Crank-Nicolson method, Euler Implicit methos etc.



The 2-D Transient Heat Conduction Equation is given by:



The numerical difference equation in implicit form is given as:-

where,

The iterative methods implemented to solve in the implicit way are:

  • Gauss-Jacobi method.
  • Gauss-Seidel method.
  • Successive Over Relaxation method For gauss-Seidel method.

The Matlab Codes are:

% Implicit solver method for 2-D Heat Equation.


clear all
close all
clc


% Grid points in x-direction
nx = 30;

% Grid Points in y-direction
ny = nx;
x = linspace(0,1,nx);
y = linspace(0,1,ny);
% Time Step
dt = 1e-1;

% length of the domain
L_x = 1; % length in x - direction
L_y = 1; % Lengthin y- direction

% Mesh size
dx = x(2)-x(1);
dy = y(2)-y(1);

% Grid
T = ones(nx,ny);

% % Initial Temperature over the grid = 100K
T = 300*ones(nx,ny);
% T(1,:) = linspace(100,800,nx);
% T(:,1) = 100;
%
% for k = 2:nx;
%
%     for l = 2:ny;
%
%         T(k,l) = T(k-1,l-1)+100;
%
%     end
%
% end
%
% T_initial_before_boundary_condition = T;


% Applying Boundary condition
% Top_Edge = 600K
% Left_Edge = 400K
% Right_Edge = 800k
% Bottom_Edge = 900K


T(1,:) = 900;
T(end,:) = 600;

T(:,1) = 400;
T(:,end) =800;

T_initial = T;
T_old = T;

iteration  = input('enter input 1.Jacobi 2.Gauss-Seidel 3. SOR Gauss-Seidel')
tic;

% Defining constants
% Thermal Diffusivity of the material (aluminium)

alpha = 1e-5;
K_1 = ((alpha*dt)/(dx^2));
K_2 = ((alpha*dt)/(dy^2));
Term_1 = ((1+(2*K_1)+(2*K_2))^-1);
p = K_1*Term_1;
q = K_2*Term_1;

tolerance = 1e-4;
error = 9e9;


jacob_iter = 1;
% Jacobi Iteration

if iteration ==1;
 for a = 1:20000

    error_1 = error;


      while(error_1 > tolerance)

          for  i = 2:nx-1;

                for j = 2:ny-1;


                      T(i,j) =(T_old(i,j)*Term_1) + ((p*(T_initial(i-1,j)+T_initial(i+1,j)))+(q*(T_initial(i,j-1)+T_initial(i,j+1))));


                end

          end

          error_1 = max(max(abs(T_initial-T)))
          T_initial = T;
          jacob_iter = jacob_iter + 1
      end

    T_old = T;

end



toc;
F = toc;

  %Plotting the curve
  figure(1)
  [m n] = contourf(x,y,T);
  clabel(m,n);
  colormap(jet);
  colorbar;
  zlabel('x-axis');
  ylabel('y-axis');
  [X,Y] = meshgrid(x,y);
  title(sprintf('Transient State Heat Conduction(Gauss-Jacobi):Total Iteration= %d,Total Time = %fs',jacob_iter,F));

 end





   % gauss-Seidel Iteration
   if iteration ==2;
   Gauss_Seidel = 2;
   tic;


      for b = 1:20000

      error = 9e9;
      error_2 = error;

        while(error_2 > tolerance)

            for k = 2:nx-1;

                for l = 2:ny-1;


                    T(k,l) = (T_old(k,l)*Term_1) + (p*(T(k-1,l)+T_initial(k+1,l))+(q*(T(k,l-1)+T_initial(k,l+1))));

                end

            end

            error_2 = max(max(abs(T_initial - T)))
            T_initial = T;
            Gauss_Seidel = Gauss_Seidel+1

        end

     T_old = T;

end
toc;
F  = toc;
%Plotting the curve
figure(1)
[m n] = contourf(x,y,T);
 clabel(m,n);
 colormap(jet);
 colorbar;
 zlabel('x-axis');
 ylabel('y-axis');
 title(sprintf('Transient State Heat Conduction(Gauss-seidel):Total Iteration= %d,Total Time = %fs',Gauss_Seidel,F));
 end



  % Successive Over Relaxation Gauss-Sidel Iteration
   SOR_Gauss_Seidel = 3;
   tic;
   if iteration ==3;
   omega = 0.9;

      for b = 1:20000
      error = 9e9;
      error_3 = error;

        while(error_3 > tolerance)

            for k = 2:nx-1;

                for l = 2:ny-1;


                    T(k,l) = (T_old(k,l)*(1-omega)) + omega*((T_old(k,l)*Term_1) + (p*(T(k-1,l)+T_initial(k+1,l))+(q*(T(k,l-1)+T_initial(k,l+1)))));

                end

            end

            error_3 = max(max(abs(T_initial - T)))
            T_initial = T;
            SOR_Gauss_Seidel = SOR_Gauss_Seidel+1

        end

     T_old = T;

end
toc;
F  = toc;
%Plotting the curve
 figure(2)
 [C,h] = contourf(x,y,T);
 clabel(C,h);
 colormap(jet);
 colorbar;
 zlabel('x-axis');
 ylabel('y-axis');
 title(sprintf('Transient State Heat Conduction(SOR Gauss-sidel):Total Iteration= %d n,Total Time = %f s',SOR_Gauss_Seidel,F));
 end

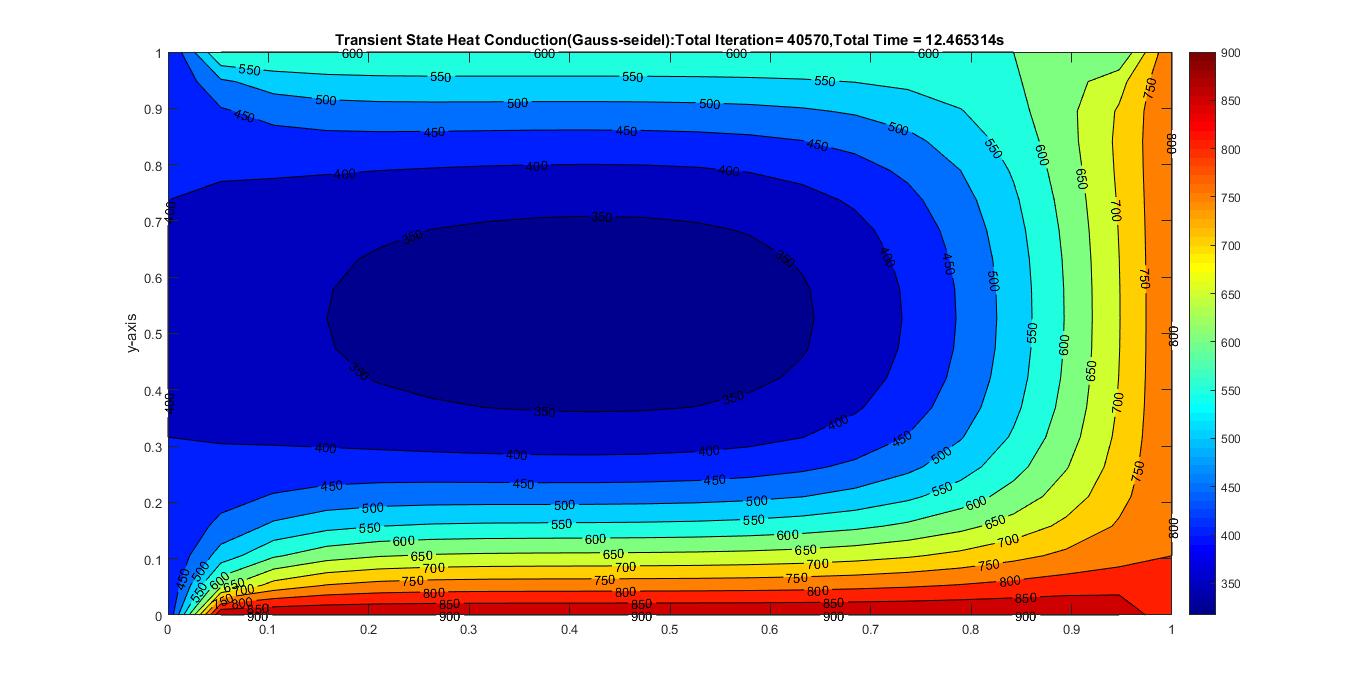

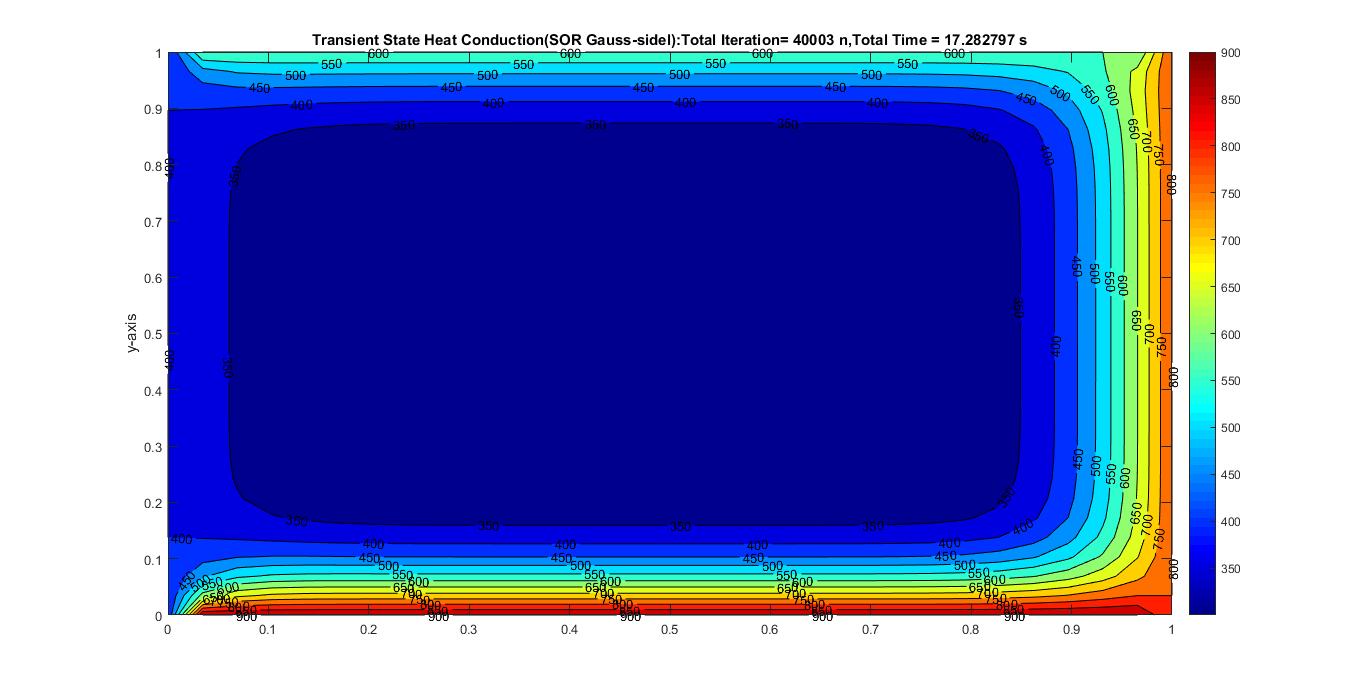

Results(Plots):

Observation:

  1. Gauss-jacobi methods takes total iterations of "41720" to converge the results.
  2. Whereas, Gauss-Seidel methods takes total iterations of "40570" which is lesser than gauss-Jacobi iteration method.
  3. However, using SOR method for Gauss-Seidel method we introduce a relaxation parameter "omega = 0.2" for faster convergence rate "omega ∈ (0,2)". the result converges at 40003 iteration which faster than the above iteration methods.
  4. The method is stable  due to implicit approach of the solution.



The Explicit form of the 2-D Transient Heat equation:

% Explicit Solver for 2-D Heat Equation.

clear all
close all
clc

% Making grid of square matrix

dt = 1e-3;

nx = 10;

ny = nx;

L = 1;
dx =L/nx-1;
dy = L/ny-1;
x = linspace(0,1,nx);
y = linspace(0,1,ny);

dy = dx;

T = 300* ones(nx,ny);

% T = linspace(200,1000,n)
%
% for a = 2:10
%
%     T(a,:) = T(a-1)+100
%
% end


% Applying Boundary condition
% Top_Edge = 600K
% Left_Edge = 400K
% Right_Edge = 800k
% Bottom_Edge = 900K


T(1,:) = 900;
T(end,:) = 600;
T(:,1) = 400;
T(:,end) =800;

T_initial = T;

alpha = 1e-5;
K_1 = ((alpha*dt)/(dx^2));
K_2 = ((alpha*dt)/(dy^2));

% The stability criteria of the method.
CFL = alpha*dt*((1/dx^2) + (1/dy^2))

% Time loop

Exp_iteration = 1;

tic;
for b = 1:10000

   % Starting Time Loop
   Exp_iteration = Exp_iteration;

   for i = 2:nx-1


       for j = 2:ny-1   % NESTED LOOPING

           T(i,j) =(T_initial(i,j)) + ((K_1*(T_initial(i-1,j)-(2*T_initial(i,j))+(+T_initial(i+1,j)))+(K_2*(T_initial(i,j-1)-(2*T_initial(i,j))+T_initial(i,j+1)))))


       end

   end

   T_initial = T;
   Exp_iteration = Exp_iteration +1

end
toc;
F= toc;
figure(2)
  [m n] = contourf(x,y,T);
  clabel(m,n);
  colormap(jet);
  colorbar;
  xlabel('x-axis');
  ylabel('y-axis');
  title('Steady State Heat conduction Explicit Method');


Results(plot):

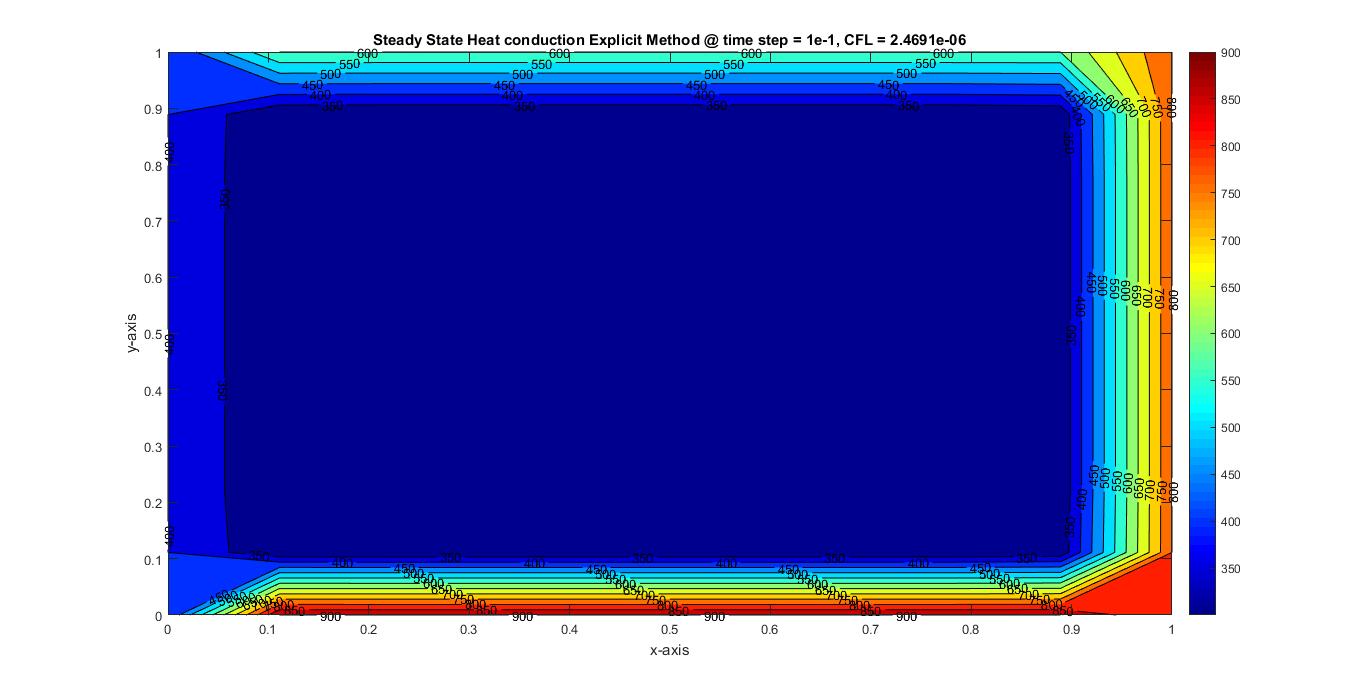

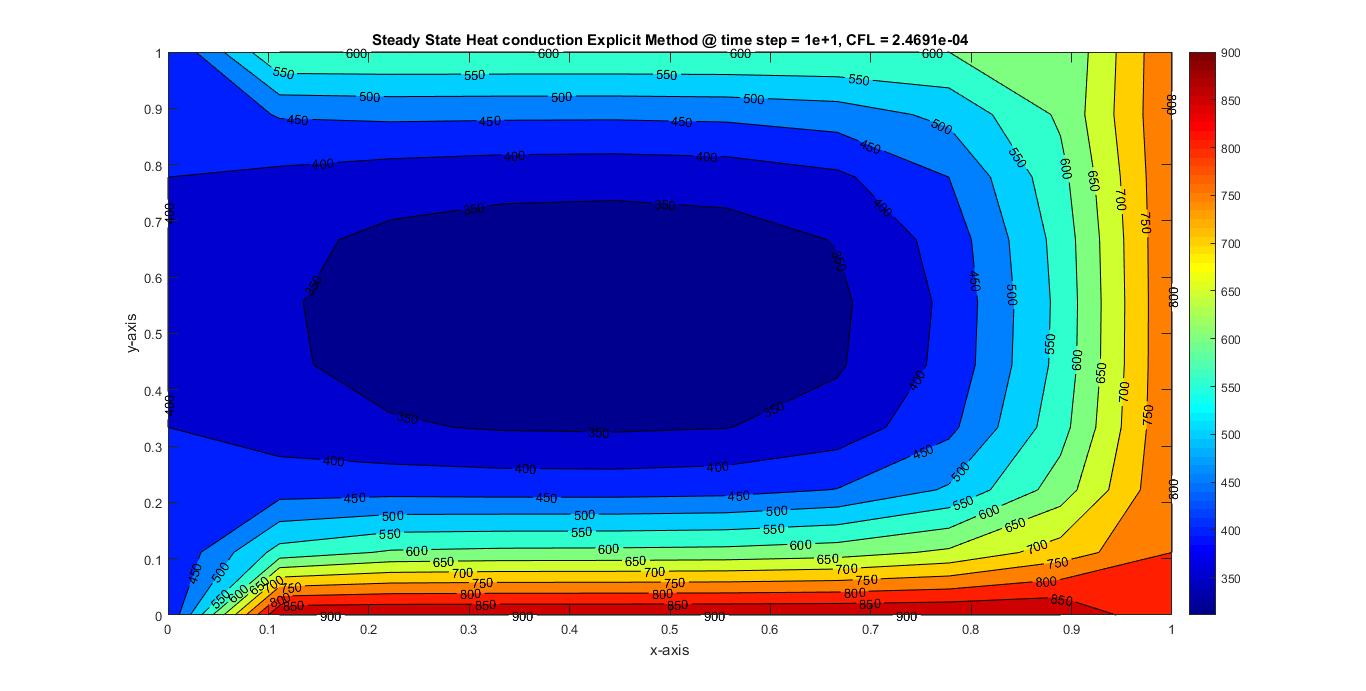

EFFECT OF TIME STEP ON RESULTS FOR EXPLICIT SOLVER:

OBSERVATIONS:

  • Explicit approach is usually not as stable as that of Implicit approach as a result in explicit appraoch we need to use smaller time step in order to maintain the stability whereas we can use higher time step and maintain stability in implicit approach.
  • The above approach is a time marching of temperature over a grid(plate) via explicit method in which new value of temperature is assigned to a node of time"n+1" from a previous time "n , n-1..".
  • At time step = 1e+1, we see that the truncation error obtained = 0.0181 and in the plots the temperature ranges are not uniformly distributed where as for time step = 1e-1, the truncation error is =0.0013 and temperature ranges are more closer and more uniformly distributed.Hence, smaller the time step generates smaller truncation error and more accurate results are obtained.
  • Also if the time step is increased beyond the optimum limit given as CFL (Courent Friedrichs-Lewy Number) then the solution gets unstable.

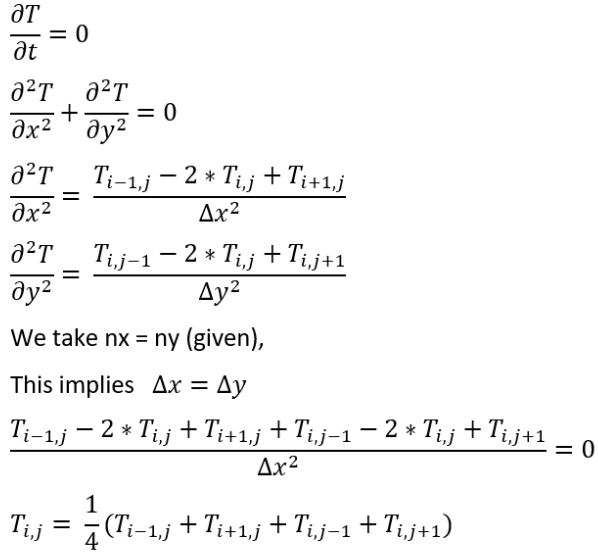

Steady State Heat Equation Analysis By Implicit Method:

MATLAB CODES:

% Steady state heat equation
clear all
close all
clc

% defining the number of grid points in X,Y direction.
nx = 100;
ny = nx;


% Defining the domain length and mesh size.
L = 1;
dx = L/(nx-1);
dy = L/(ny-1);
x = linspace(0,L,nx);
y = linspace(0,L,ny);
[X Y] = meshgrid(x,y);

% Defining the Temperature distribition over the grid.
T = zeros(nx,ny);
T(1,:) = linspace(100,800,nx);
for a = 2:nx;

    for b = 1:ny;

        T(a,b) = T(a-1,b);

    end
end

T_Before_boundary_condition = T;
T_initial = T;


% Applying Boundary Condition
% Top_Edge = 600K
% Left_Edge = 400K
% Right_Edge = 800k
% Bottom_Edge = 900K

T(1,:)   = 600;
T(end,:) = 900;
T(:,1)   = 400;
T(:,end) = 800;
iteration = input('1. Jacobi_Iteration  2. Gauss-sidel_iteration  3.SOR_Gauss-sidel_iteration');
k = (2*(dx^2 + dy^2)/(dx^2)*(dy^2));

% # Jacobi Iteration for the Steady State Heat Equation.
% # Initializing Convergence Loop
% # Tolerance for steaady state convergence.
Tolerance = 1e-10;

tic;
jacob_iter = 1;
if iteration == 1;

    error   = 9e9;
    error_1 = error;

    while (error_1 > Tolerance);


        for i = 2:nx-1;

            for j = 2:ny-1;

                T(i,j) =((T_initial(i-1,j) + T_initial(i+1,j))/k*(dx^2)) + ((T_initial(i,j-1) + T_initial(i,j+1))/k*(dy^2));

            end

        end

        error_1 = max(max(abs(T_initial - T)))
        T_initial = T;
        jacob_iter = jacob_iter + 1

    end
    toc;
    F = toc;

 %Plotting the curve
  figure(1)
  [m n] = contourf(x,y,T);
  clabel(m,n);
  colormap(jet);
  colorbar;
  zlabel('x-axis');
  ylabel('y-axis');
  title(sprintf('Steady State heat Conduction(Jacobi):total iteration= %d, Time taken = %fs',jacob_iter,F));
end



% initializing Gauss-sidel Iteration
tic;
Gauss_Sidel_iter = 2;
if iteration == 2;

    error   = 9e9;
    error_2 = error;
    while (error_2 > Tolerance);

        for i = 2:nx-1;

            for j = 2:ny-1;

                T(i,j) = ((T(i-1,j) + T_initial(i+1,j))/k*(dx^2)) + ((T_initial(i,j+1) + T(i,j-1))/k*(dy^2));

            end


        end

        error_2 = max(max(abs(T_initial-T)))
        T_initial = T;
        Gauss_Sidel_iter = Gauss_Sidel_iter + 1

    end
    toc;
    F = toc;
   %Plotting the curve
  figure(2)
  [m n] = contourf(x,y,T);
  clabel(m,n);
  colormap(jet);
  colorbar;
  zlabel('x-axis');
  ylabel('y-axis');
  title(sprintf('Stady State heat Condition: Total iteration = %d, Time Taken = %fs',Gauss_Sidel_iter,F));
end



% initializing  Successive Over Relaxation Gauss-sidel Iteration
% Defining Relaxation constant (omega)[0 < omega < 2].
omega = 1.5;
tic;
SOR_Gauss_Sidel_iter = 3;
if iteration ==3;

    error   = 9e9;
    error_2 = error;
    while (error_2 > Tolerance);

        for i = 2:nx-1;

            for j = 2:ny-1;

                T(i,j) = (1-omega)*T_initial(i,j) +omega*(((T(i-1,j) + T_initial(i+1,j))/k*(dx^2)) + ((T_initial(i,j+1) + T(i,j-1))/k*(dy^2)));

            end


        end

        error_2 = max(max(abs(T_initial-T)))
        T_initial = T;
        SOR_Gauss_Sidel_iter = SOR_Gauss_Sidel_iter + 1

    end
    toc;
    F=toc;
   %Plotting the curve
  figure(2)
  [m n] = contourf(x,y,T);
  clabel(m,n);
  colormap(jet);
  colorbar;
  zlabel('x-axis');
  ylabel('y-axis');
  title(sprintf('Steady State Heat conduction:total iteration = %d,Total Time  = %fs',SOR_Gauss_Sidel_iter,F));

end

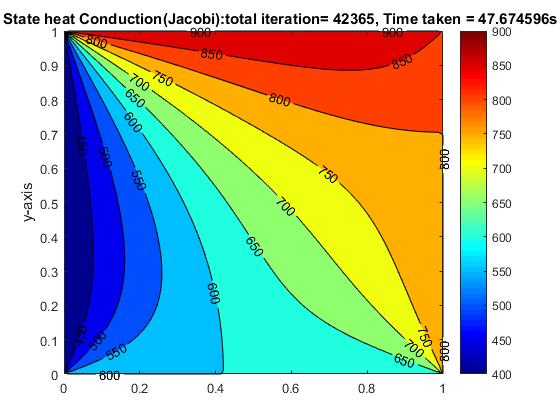

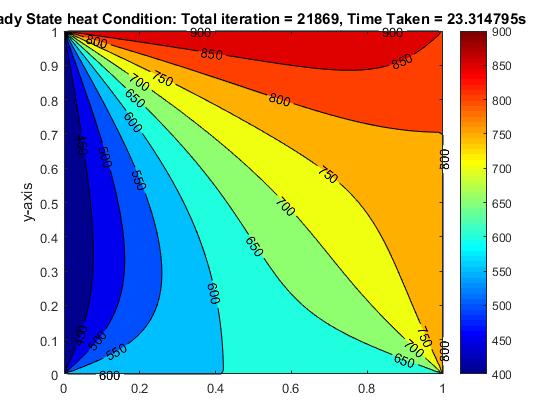

RESULTS(PLOTS):

OBSERVATIONS:

From the results of steady state heat equation, we can figure out that using Gauss-jacobi method takes more iteration than any other method to determine the temperature distribution. Whereas, using successive over relaxation for Gauss-Seidel method using an optimum relaxation parameter "omega = 0.2" gives a huge margin in the rate of convergence from its predecessor. The final error obtained for following methods are:-

  • Gauss-Jacobi (error)          =  9.9931e-11
  • Gauss-Seidel (error)          =  9.9817e-11
  • SOR Gauss -Seidel (error) =  9.9817e-11
